STELAŻ TUNELU OGRODOWEGO 3 SEGMENTOWEGO 3,5 x 2m

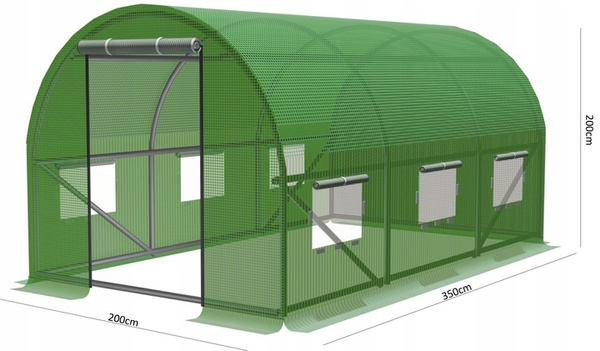

3.5m x 2m x 2m
3 SEGMENTS
by GardenLine

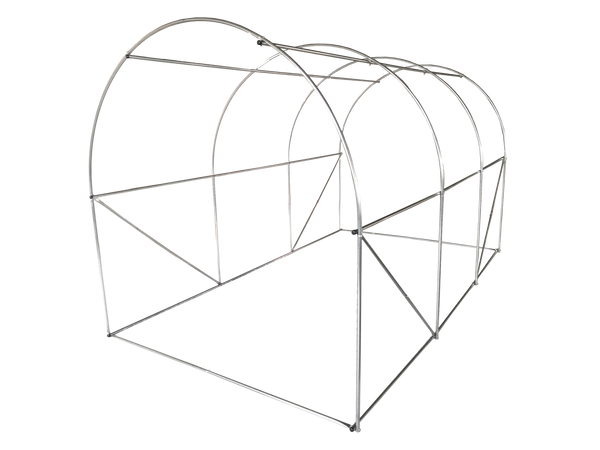

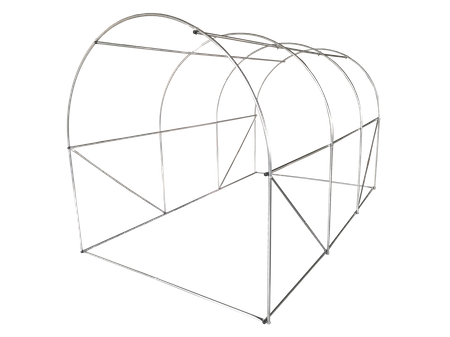

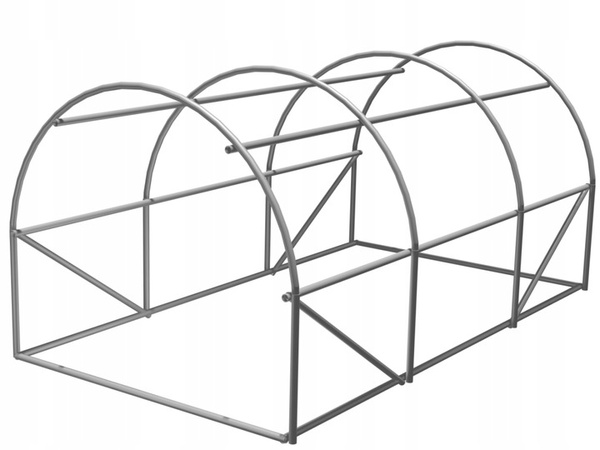

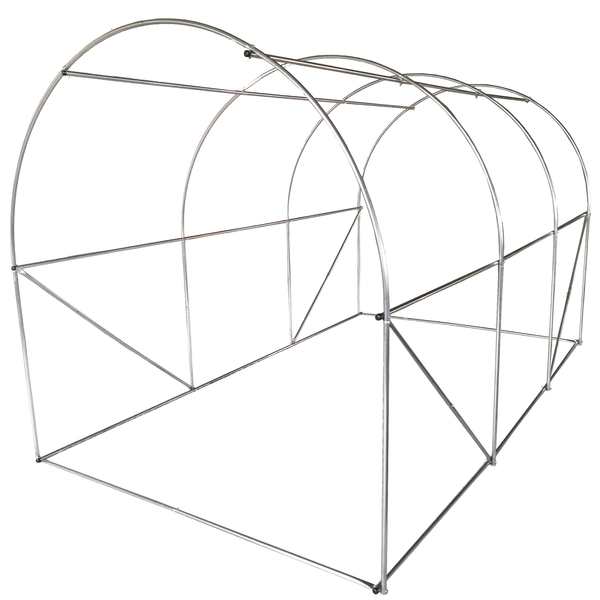

FRAME OF THE GARDEN TUNNEL 3 SEGMENT 3.5 x 2m
- brand GardenLine
- size when folded 2x3.5x2m
- Diameter of pipes 19mm
- 2 top pipes
- Galvanized on both sides
- Screws included
- Connectors included
- Caps included

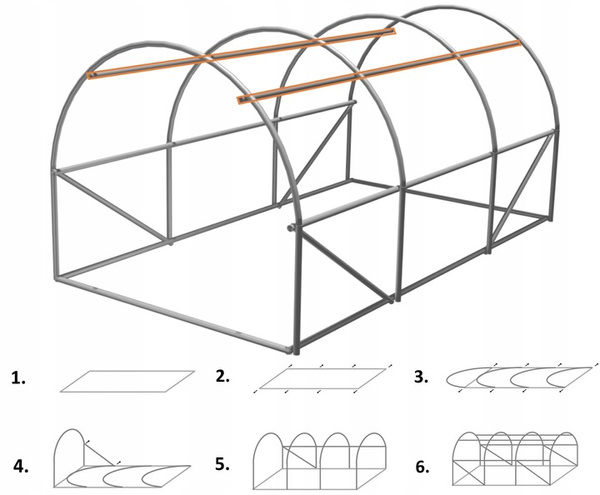

Step 1. Lay out the base elements described in the user manual
Step 2.Install the screws in the holes and tighten them slightly so that they do not resist. Do not tighten them completely
Step 3.Connect the pipes into arches. Screw the finished elements to the previously installed screws from step "2"
Step 4. Stand the first arch upright and secure it with a diagonal pipe.
Step 5. Stand all arches, connecting them with the upper crossbar. Still do not tighten all screws completely.
Step 6. Install the remaining crossbars and diagonal pipes. When all elements are assembled, you can tighten the screws fully. Put on the film and anchor the tunnel to the ground.
If there are strong gusts of wind in your area, or if the greenhouse is in an open space, it is advisable to secure it with additional anchors to the ground, e.g., metal rods.
Product code: TUN0334
